H30D-1G1RD-1A
3mm Round, Yellow Green& Deep Red
Bi-Level LED CBI
Technical Data Sheet
Features:
? Low power consumption.
? High efficiency.
? Good control and free combinations on the colors of LED lamps.
? Good lock and easy to assembly.
? Stackable and easy to assembly.
? Stackable vertically and easy to assembly.
? Stackable horizontally and easy to assembly.
? Versatile mounting on P.C board or panel.
? Black case enhances contrast ratio.
? Compliance with EU REACH.
? The product itself will remain within RoHS compliant Version.
Descriptions:
? CBI (Circuit Board Indicator) is a black plastic right angle Holder (Housing) which mates with Luckylight LED
lamps. ? Luckylight CBI is available in a wide variety of packages, including top-view (Spacer) or right angle and
horizontal or vertical arrays which is stackable and easy to assembly.
Applications:
? Computer.
? Communication. ? Industrial.
Device Selection Guide
Part No. Emitting Color Lens Color(LED)
H30D-1G1RD-1A
G Yellow Green Green Diffused
R Deep Red Red Diffused
Package Dimension:


Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ± 0.25 mm (.010″) unless otherwise noted.
3. Protruded resin under flange is 1.00mm (.039″) max.

Absolute Maximum Ratings at Ta=25℃
Notes:
a. Derate linearly as shown in derating curve.
b. Duty Factor = 10%, Frequency = 1 kHz.
Parameters Symbol Max. Unit
Power Dissipation
Yellow Green
Pd
78 mW
Red 78 mW
Peak Forward Current (a)
Yellow Green
IFP 100 mA
Red
DC Forward Current (b)
Yellow Green
IF 30 mA
Red
Reverse Voltage
Yellow Green
VR 5 V
Red
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃
Notes:
a. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
b. 2θ1/2 is the o-axis angle where the luminous intensity is 1?2 the peak intensity.
c. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which
defines the color of the device.
Parameters Symbol Emitting
Color Min. Typ. Max. Unit Test Condition
Luminous Intensity (a) Iv
Yellow Green 10 30 ---
mcd IF=20mA
Red 20 45 ---
Viewing Angle (b) 2θ1/2
Yellow Green --- 80 ---
deg. IF=20mA
Red --- 80 ---
Peak Emission Wavelength λp
Yellow Green --- 565 ---
nm IF=20mA
Red 660
Dominant Wavelength (c) λd
Yellow Green --- 571 ---
nm IF=20mA
Red 640
Spectral Line Half-Width △λ
Yellow Green --- 45 ---
nm IF=20mA
Red 30
Forward Voltage VF
Yellow Green 1.6 2.2 2.6 V IF=20mA
Red 1.6 2.2 2.6
Reverse Current IR
Yellow Green --- --- 10
μA VR=5V

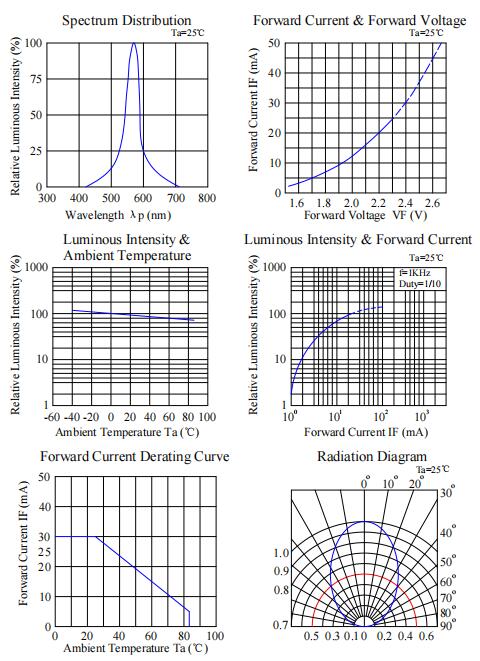

Typical Electrical / Optical Characteristics Curves
(25℃ Ambient Temperature Unless Otherwise Noted)
Green:


Red:

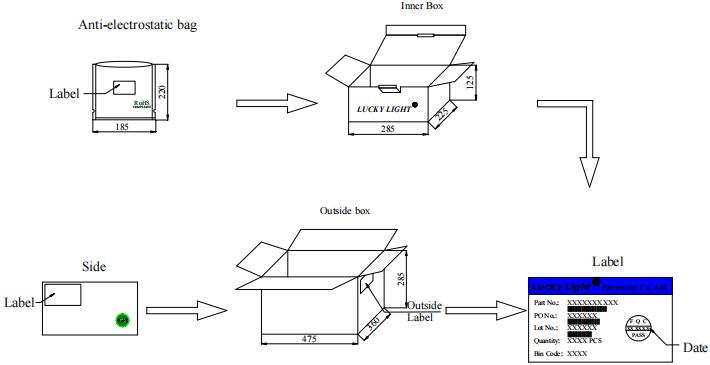

Packing & Label Specifications:

Packing Quantity:
a. 500 PCS/bag.
b. 5000 PCS/Inner Box.
c. 6 Inner Boxes/Outside Box.
CAUTIONS
1. Over-current-proof
Customer must apply resistors for protection, otherwise slight voltage shift will cause big current change (Burn out will
happen).
2. Storage
2.1 The LEDs should be stored at 30°C or less and 70%RH or less after being shipped from Luckylight and the
storage life limits are 3 months. If the LEDs are stored for 3 months or more, they can be stored for a year in a
sealed container with a nitrogen atmosphere and moisture absorbent material.
2.2 Please avoid rapid transitions in ambient temperature, especially, in high humidity environments where
condensation can occur.
3. Cleaning
Use alcohol-based cleaning solvents such as isopropyl alcohol to clean the LEDs if necessary.
4. Lead Forming & Assembly
During lead forming, the leads should be bent at a point at least 1.6mm from the base of LED lens. Do not use the
base of the lead frame as a fulcrum during forming. Lead forming must be done before soldering, at normal
temperature. During assembly on PCB, use minimum clinch force possible to avoid excessive mechanical stress.
5. Soldering
When soldering, for Lamp without stopper type and must be leave a minimum of 3mm clearance from the base of
the lens to the soldering point. Do not apply any external stress to the lead frame during soldering while the LED is
at high temperature.
Recommended soldering conditions:
Note: Excessive soldering temperature and / or time might result in deformation of the LED lens or catastrophic failure of the LED.
6. Drive Method
An LED is a current-operated device. In order to ensure intensity uniformity on multiple LEDs connected in parallel
in an application, it is recommended that a current limiting resistor be incorporated in the drive circuit, in series with
each LED as shown in Circuit A below.
Soldering Iron Wave Soldering
Temperature
Soldering Time
300℃ Max.
3 sec. Max.
(one time only)
Pre-heat
Pre-heat Time
Solder Wave
Soldering Time
100℃ Max.
60 sec. Max.
260℃ Max.
5 sec. Max



(A) Recommended circuit
(B) The brightness of each LED might appear different due to the differences in the I-V characteristics of those
LEDs.
7. Repairing
Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head
soldering iron should be used. It should be confirmed beforehand whether the characteristics of the LEDs will or
will not be damaged by repairing.
8. ESD (Electrostatic Discharge)
Static Electricity or power surge will damage the LED. Suggestions to prevent ESD damage:
8.1.Use a conductive wrist band or anti- electrostatic glove when handling these LEDs.
8.2.All devices, equipment, and machinery must be properly grounded.
8.3.Work tables, storage racks, etc. should be properly grounded.
8.4.Use ion blower to neutralize the static charge which might have built up on surface of the LEDs plastic lens as
a result of friction between LEDs during storage and handing.
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current, low forward
voltage, or “no light up” at low currents.
To verify for ESD damage, check for “l(fā)ight up” and VF of the suspect LEDs at low currents.
The VF of “good” LEDs should be >[email protected] for InGaN product and >[email protected] for AlInGaP product.
9. Others
9.1 The information included in this document reflects representative usage scenarios and is intended for technical
reference only.
9.2 The part number, type, and specifications mentioned in this document are subject to future change and
improvement without notice. Before production usage customer should refer to the latest datasheet for the
updated specifications.
9.3 When using the products referenced in this document, please make sure the product is being operated within
the environmental and electrical limits specified in the datasheet. If customer usage exceeds the specified
limits, Luckylight will not be responsible for any subsequent issues.
9.4 The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Consult Luckylight’s Sales in advance for information
on applications in which exceptional reliability is required, particularly when the failure or malfunction of the
LEDs may directly jeopardize life or health, such as in aviation, transportation, traffic control equipment,
medical and life support systems and safety devices
